Coming later this year
Panel Analyser
A desktop tool for extracting quantitative statistics from 2D geological panel images.
WHAT IT DOES
Turn 2D panels into quantitative insight

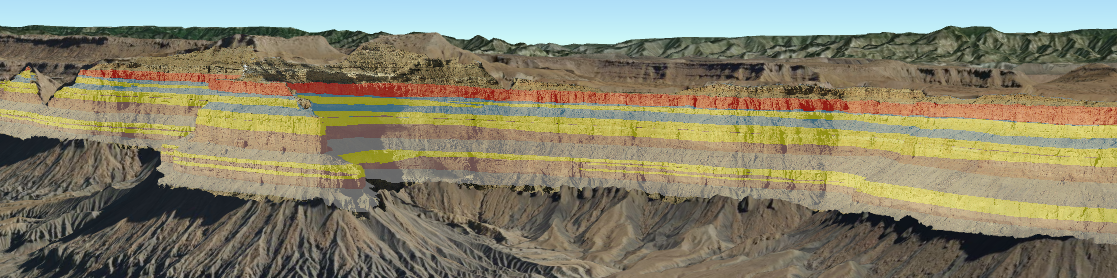

Import an interpreted 2D image; virtual outcrop interpretation projection, geological cross-section
and PanelAnalyser computes the statistics that drive modelling and analogue analysis.

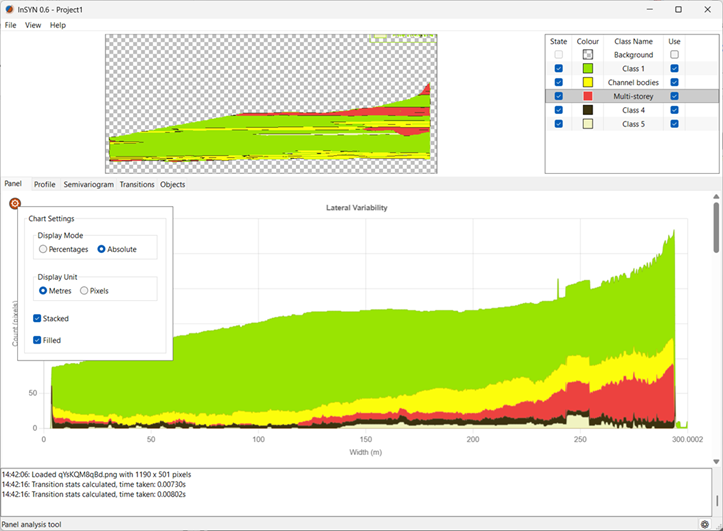

Proportion Curves & Ranges
Visualise the proportion of classes through vertical and horizontal profiles across the panel.
Profiles
Quantify spread of class proportions with min, max, mean, percentiles, standard deviation and variance.
Semi-Variograms & Transitions
Characterise spatial continuity and class-to-class transition probabilities in all directions.
Transitions statistics
Characterise spatial continuity and class-to-class transition probabilities in all directions.
Object Dimensions
Detect individual objects and measure width, height, area, perimeter and circularity automatically.
Synthetic Seismic
Characterise spatial continuity and class-to-class transition probabilities in all directions.
WORKFLOW
From image to insight in four steps
01
Import image
Load an orthorectified, georeferenced panel image from LIME or any source.
02
Assign classes
Define classes by colour and label facies, lithology, or any segmentation scheme.
03
Compute statistics
Proportions, variograms, object dimensions and synthetic seismic in one click.
04
Export results
Tables, charts and images ready for reports and modelling workflows.
Get early access
Request a demo
PanelAnalyser launches later this year. Leave your details and the Fonix team will get in touch to arrange a walkthrough on your own panel images.
